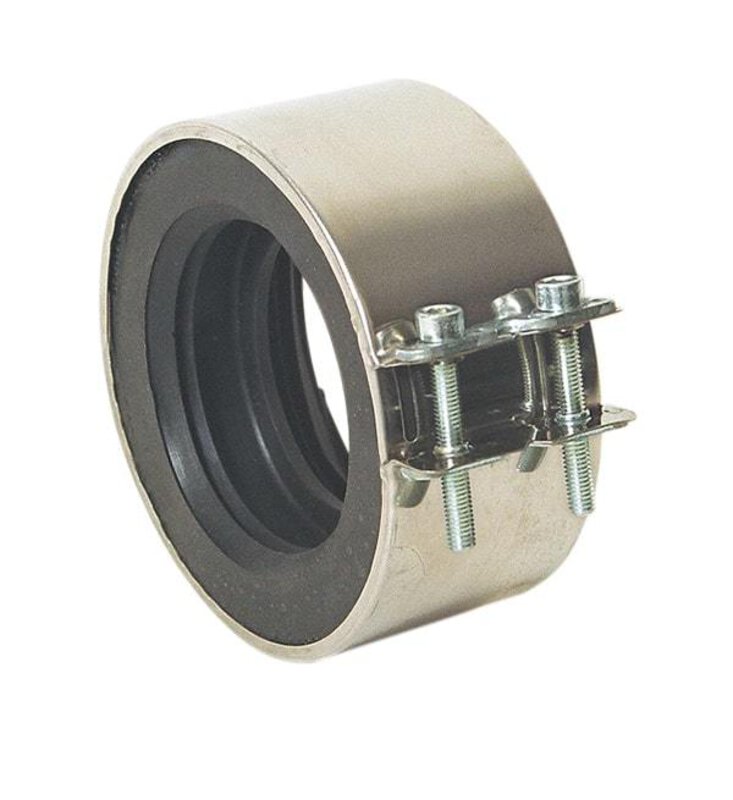

SML DN100 Adaptor Coupling SML to Other (110 x 108-113mm OD)

Product Code: 52013

In Stock

Description

Adaptor Coupling (CIS Soil to Other)

Brymec's high-quality cast-iron tube and fittings range offers a solution for soil, waste, and rainwater drainage. The Brymec lightweight, dry jointed pipework system is BBA certified, Kitemark certified and compliant with BS EN 877 which is the European standard for cast iron pipes and fittings. The full range consists of socketless cast iron tube and fittings jointed with either ductile iron or stainless steel rubber lined couplings.


Features and Benefits

  • High strength, low maintenance system
  • Ready to use single piece coupling with EPDM rubber
  • A fixing screw each side of the joint gives excellent joint tolerance
  • Allows for quick connection of CIS tube and fittings directly to other systems such as PVC & HDPE
  • Pressure rated up to 0.5 Bar
  • Quick to assemble

Cast Iron Drainage Information

Cast Iron Literature and Data Sheets

Technical Data
Max Pressure0.5 bar
ApprovalsComplies with BS EN 870
Size (metric)100mm
TypeAdaptors
FinishStainless Steel
